Description

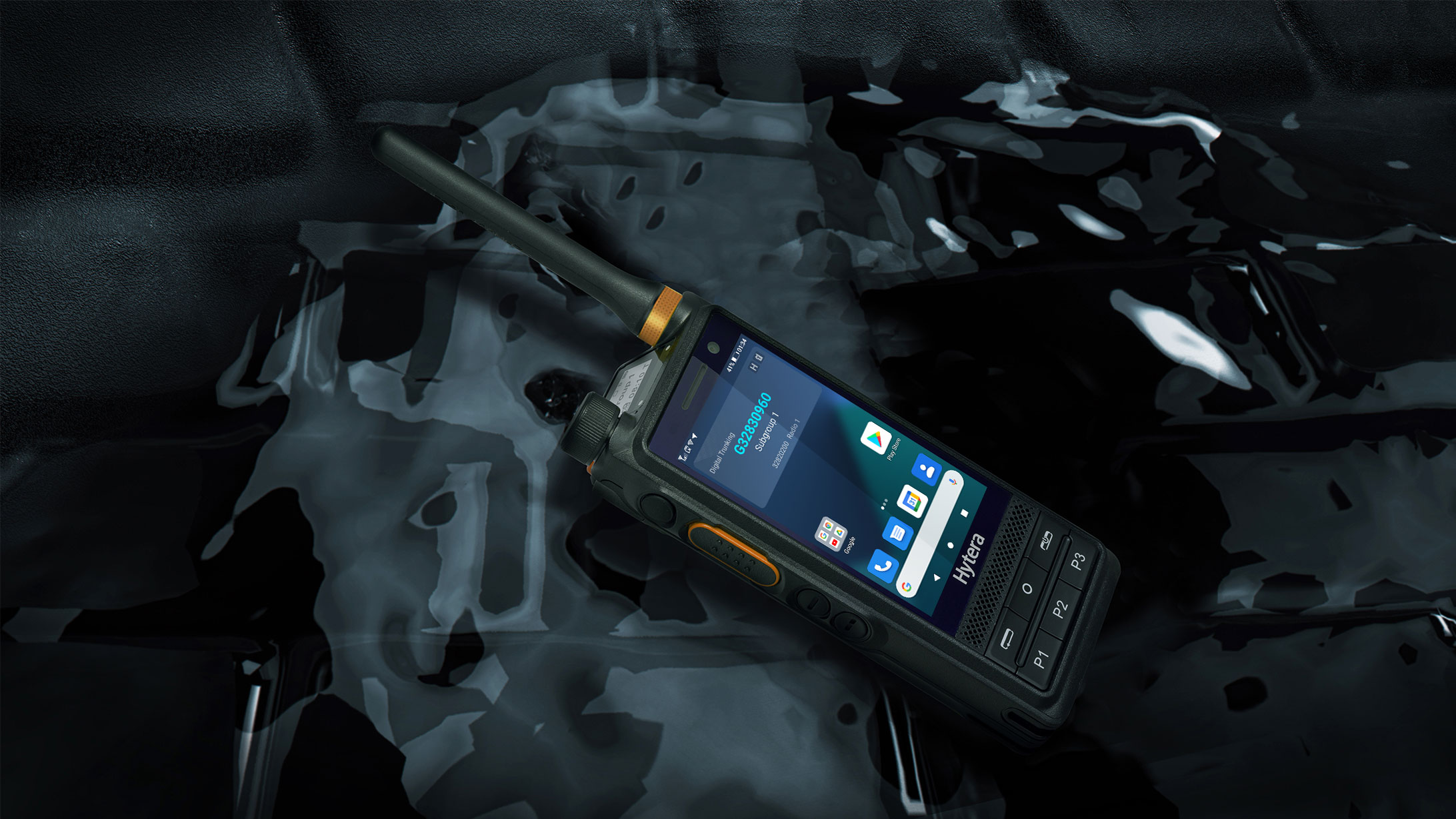

Hytera PDC680 dual-mode rugged radio combines a missioncritical DMR radio with an Android-based smartphone in a
single device.
It harnesses the power of narrowband and
broadband technologies to provide mission-critical voice call,
photo and video taking, positioning, and more.
This innovative radio enables seamless communications
between the DMR network and public networks such as 2G,
3G, LTE, and WLAN.
As a professional rugged radio, the
PDC680 is engineered for effortless usability. The ergonomic
and modular design of the device’s smart knob
and keys
makes the UI easy to accomplish tasks with one hand. Boasting Google Mobile Certification and an Android 10
operating system, PDC680
is a modern device built for the
modern worker. When used with Zebra Workforce Connect
push-to-talk, PDC680 users can achieve truly
nationwide
coverage with other smart devices without geographical
barriers, while reaping all the benefits of DMR technology
for
their on-site communications.

Technical Specifications

General
Dimensions (H x W x D): 140 x 60 x 29.1mm
Weight (with antenna & battery): 325±5g
AP Processor: 8-core, 1.8GHz
Operating System: Android 10
Google Certification: Google Mobile Services
Memory: RAM: 3GB; ROM: 32GB eMMC, Supports up to 256GB with Micro SD card
Ports: 13PIN Accessory/Charging Port
Top Screen: 0.92″128×88 Colour: black & white
Main Screen: 3.6″ 1280×720, Capacitive, Touch Screen, Gloves Proofed, Passive Stylus

Card Slots
2 Nano SIM cards
1 Micro SD card
1 Encryption card

Front Camera
8MP, Fixed Focus
Rear Camera
13MP, Auto Focus

Sensors

Proximity Sensor
Ambient Light Sensor
6-axis sensor (accelerometer + gyroscope)
Magnetometer
Accelerometer
Wireless Data Communication
DMR/Analogue
340-470MHz
LTE
3GPP LTE FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B26/B28 TDD-LTE: B34/B38/B39/B40/B41
CDMA
CDMA 1xRTT BC0 CDMA2000 1xEV-DO BC0
WCDMA
B1/B2/B4/B5/B8
TD-SCDMA
B34/B39
GSM
850/900/1800/1900MHz
WLAN
802.11 a/b/g/n/ac, 2.4GHz/5GHz
NFC (Optional)
13.56MHz
BT
V4.2, BDR/EDR/BLE
Positioning
GPS/BDS/GLONASS/Galileo/QZSS/A-GPS Position performance for open zone : TTFF (Cold boot)< 1minute Horizontal position accuracy < 10meters Transceiver Channel Spacing 25/20/12.5kHz TX Power 1W/3W (Analogue) 1W/4W (DMR) RX Sensitivity 0.2uV/-121dBm (12dB SINAD) 0.16uV/-123dBm (12dB SINAD) (Typical) 0.2uV/-121dBm @BER5% Inter-modulation TIA-603: 70dB@12.5/20/25kHz ETSI: 65dB@12.5/20/25kHz Blocking 84dB Suppression of Spurious Response TIA_603: 70dB@12.5/20/25kHz ETSI: 70dB@12.5/20/25kHz Adjacent Channel Selectivity TIA_603: 60dB@12.5kHz/70dB@20/25kHz ETSI: 60dB@12.5kHz/70dB@20/25kHz Frequency Stability ±0.5ppm Battery Standard 2400 mAh Li-polymer, 7.7V (Rated) Optional High Capacity 4000 mAh, 7.7V (Rated) Video and Photo Video File Types 3GPP(.3gp), MPEG-4(.mp4) QuickTime(.mov), WEBM(.webm), Windows Media(.asf,.wmv), RealMedia(.rmvb, .rm) MPEG-PS(.mpg, .mpeg), MPEG-TS(.ts), AVI(.avi), Matroska(.mkv) Image File Types JPEG(.jpg), GIF(.gif ), PNG(.png), BMP(.bmp) Video Recording Quality Front Camera: 1080P HD up to 30 frames per second (fps) Rear Camera: 1080P HD up to 30 frames per second (fps) Audio file Types MP3(.mp3), WAV(.wav), 3GPP(.3gp), MPEG-4(.mp4,.m4a), ATDS raw AAC(.aac), MPEG-TS(.ts), FLAC(.flac), MIDI(.midi, .xmf, .mxmf ), RTTTL/RTX(.rtttl, .rtx), OTA(.ota), iMelody(.imy), Ogg(.ogg), Matroska(.mka), QCELP(.qcp), RealMedia(.ra), Windows Media(.wma), AC3(.ac3) Audio Output 2W Audio Distortion ≤3% Digital Vocoder Type AMBE+2™ Environment Dust and Water Proofing IEC60529- IP68 (2m, 4h), IEC60529- IP66 Shock and Vibration MIL-STD-810G Humidity MIL-STD-810G, ≤ +65°C,95%RH ESD IEC 61000-4-2 (Level 4), ±8kV (Contact), ±15kV (Air) Operating Temperature -20°C - +60°C Storage Temperature -30°C - +80°C
